Multivac R535
Manufacturer:
Multivac
Type:
R535
Year Built:
2010
Working Hours:
160

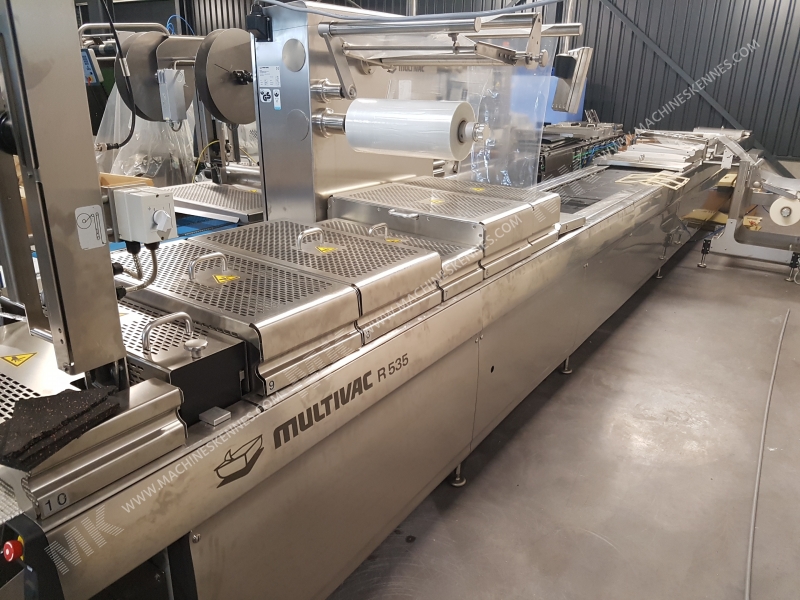

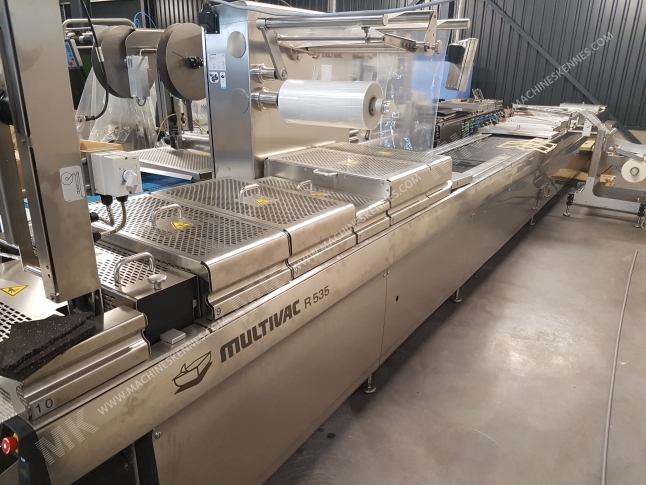

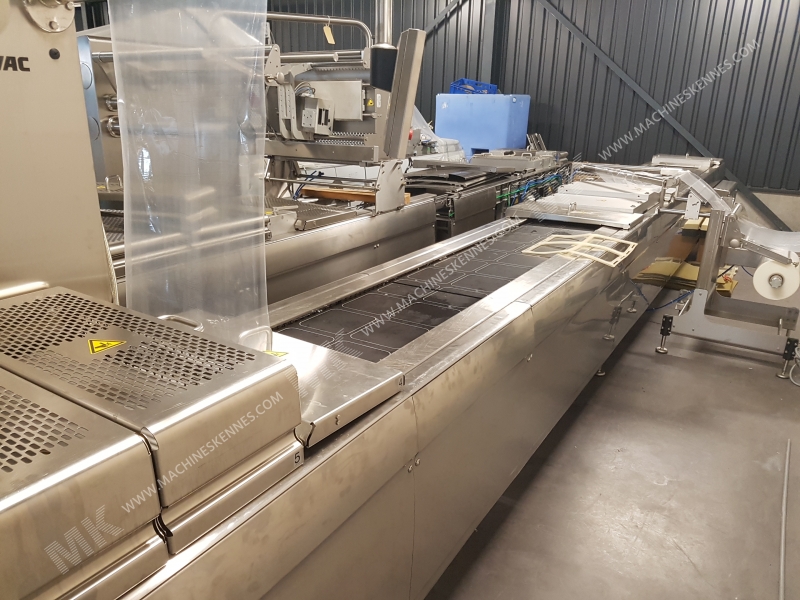

This used Multivac R535 Thermoformer is built in 2010. On the PLC in the machine is standing 160 operating hours. The machine has a film width of 459mm and there is a dye set on the machine with an exit of 420mm. The format is now divided in a 2.2 format. The machine is equipped with 1 format. This format can be used for Soft Folie packaging. The format does not have a stamp. The frame of the machine is currently 10500mm long, but we can always adjust this to the dimension you need.
Machine details
- Type under foil unwinding: 76mm Core.
- Type top foil unwinding: 76mm core.
- The machine has 2 QRF cuts.
- The machine is equipped with a Cassette Undercut length cutting.
- For the process the residual foil is a Roll-up wheels on this machine.

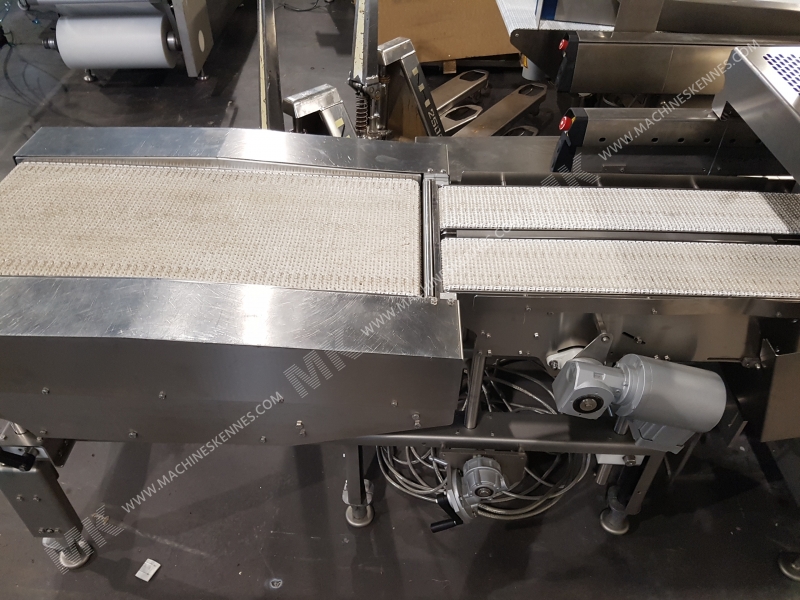

- The products come from the machine on a Inliner.
Other features of the machine
- Vacum option
- Gas flushing
- Forming Pump
If you wish, you can contact us more photos or information.
