Multivac R145 (320mm)

Warehouse Location:






Year Built:

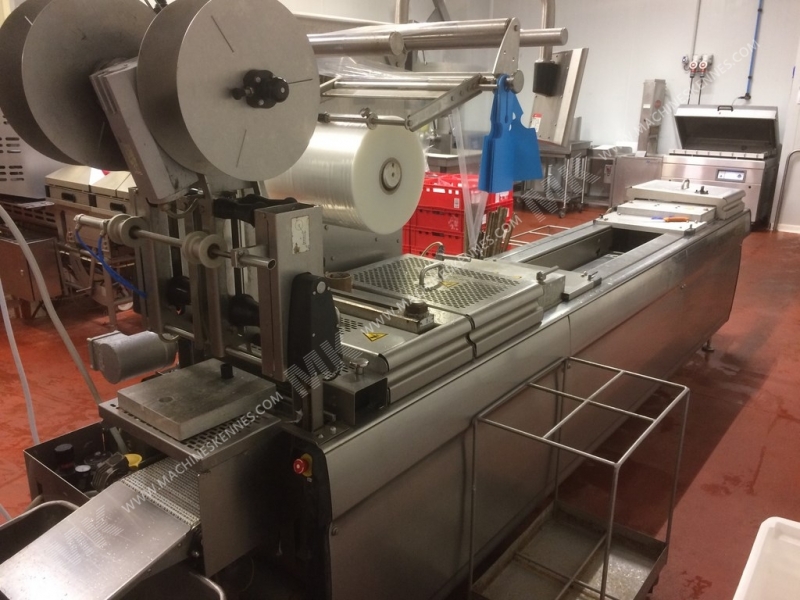

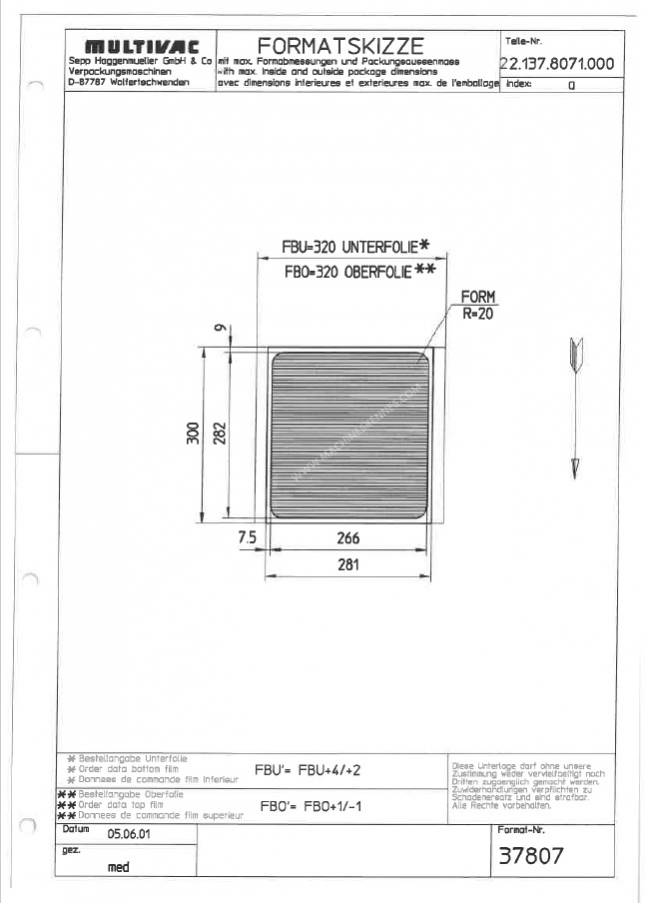

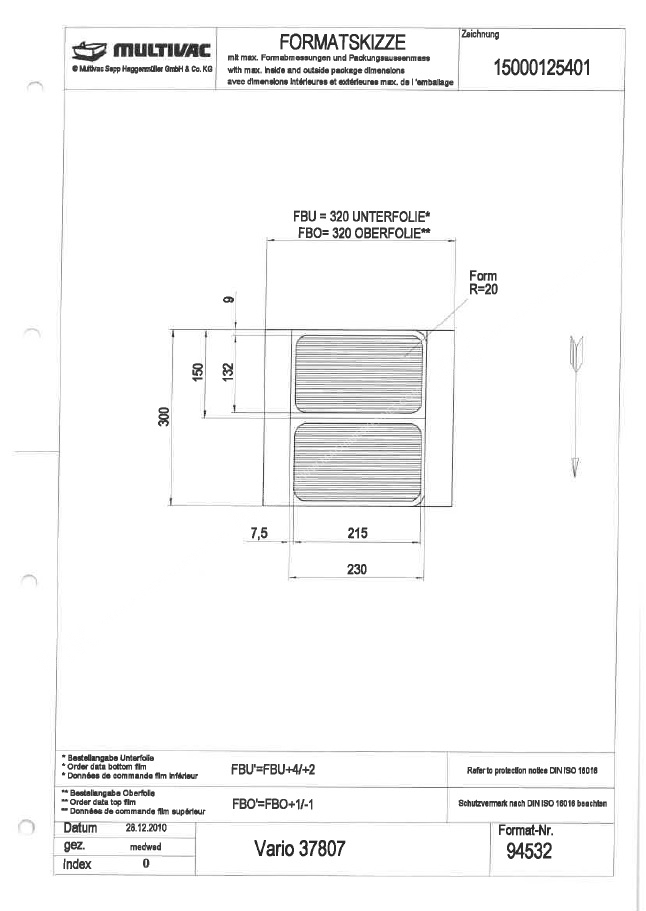

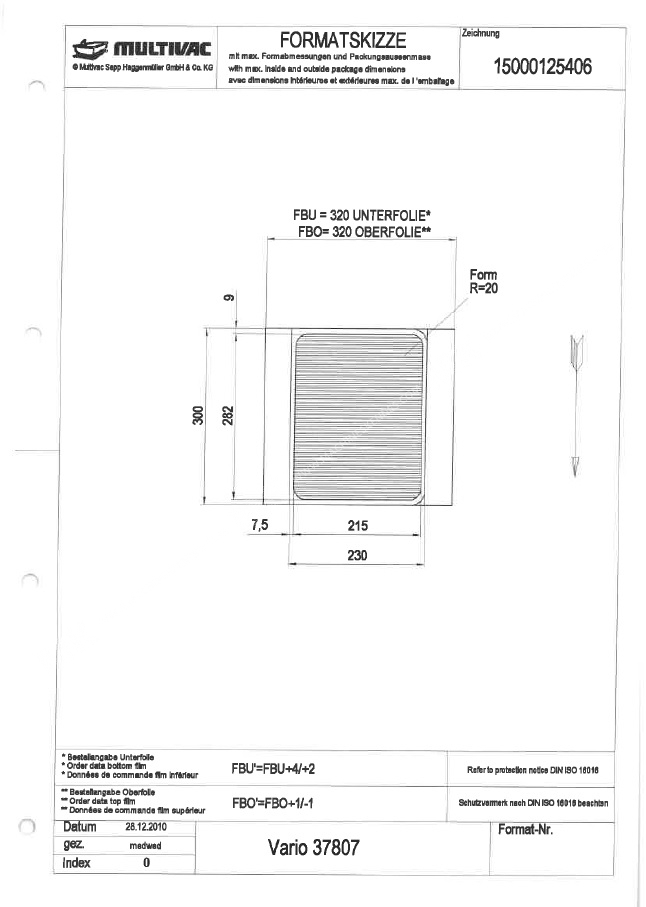

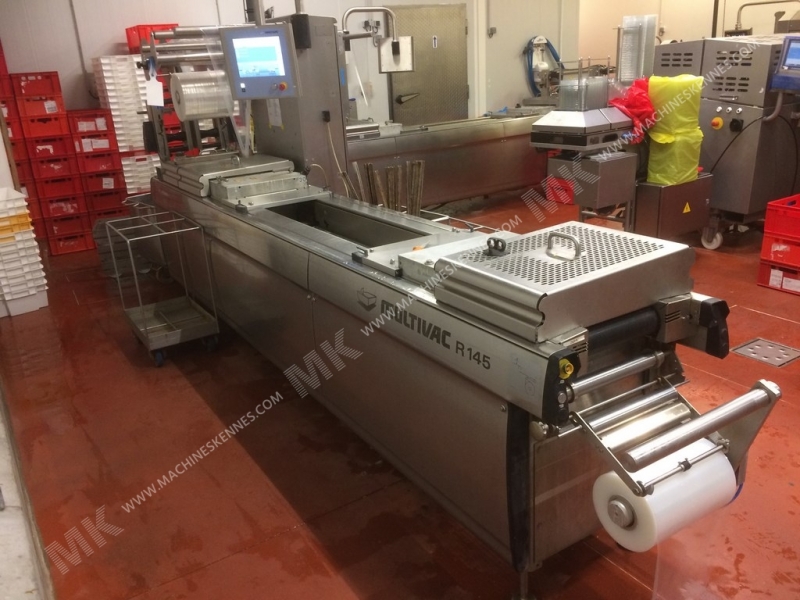

This used Multivac R145 Thermoformer is built in 2011. The machine has a film width of 320mm and there is a dye set on the machine with an exit of 300mm. The format is now divided in a 1.1 format. The machine is equipped with 3 formats. These formats can be used for Soft and Rigid Film packaging. The format does not have a stamp. The frame of the machine is currently 3500mm long, but we can always adjust this to the dimension you need.

Machine details

  • Type under foil unwinding: 76mm Core.
  • Type top foil unwinding: 76mm core.
  • The machine has 1 QRF cut.
  • The machine has 1 cut stans (Hard foil).
  • The machine is equipped with a Cassette Undercut length cutting.
  • For the process the residual foil is a Roll-up wheels on this machine.
  • The products come from the machine on a Modulair belt.

Other features of the machine

  • Vacum option
  • Gas flushing
  • Main Pump

If you wish, you can contact us more photos or information.
