Used Machines

Multivac R530





Year Built:

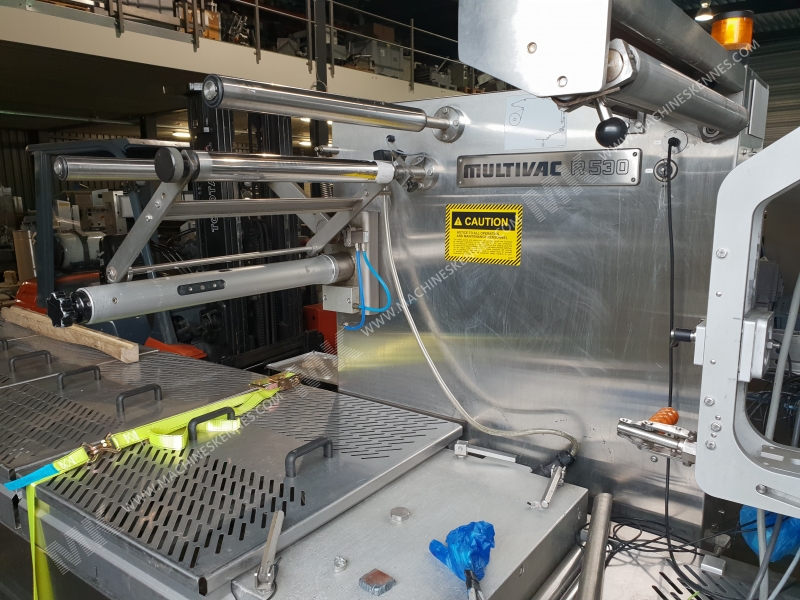

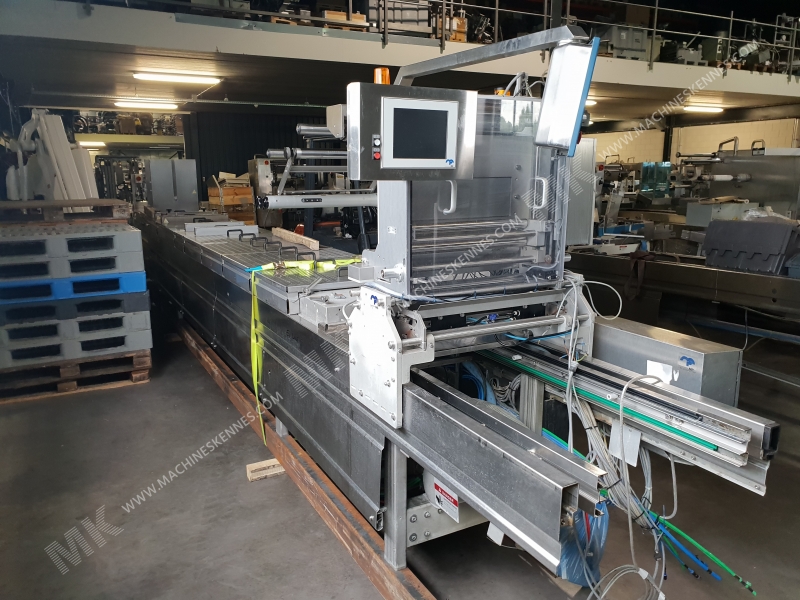

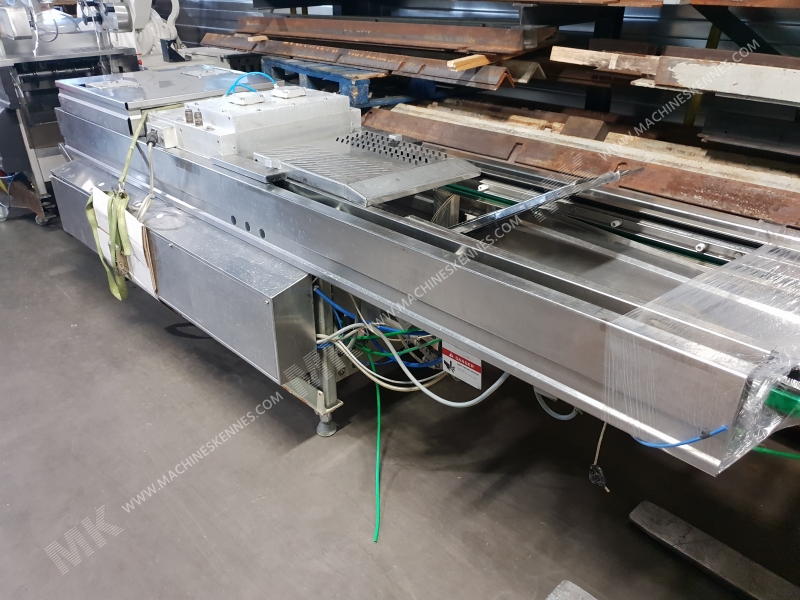

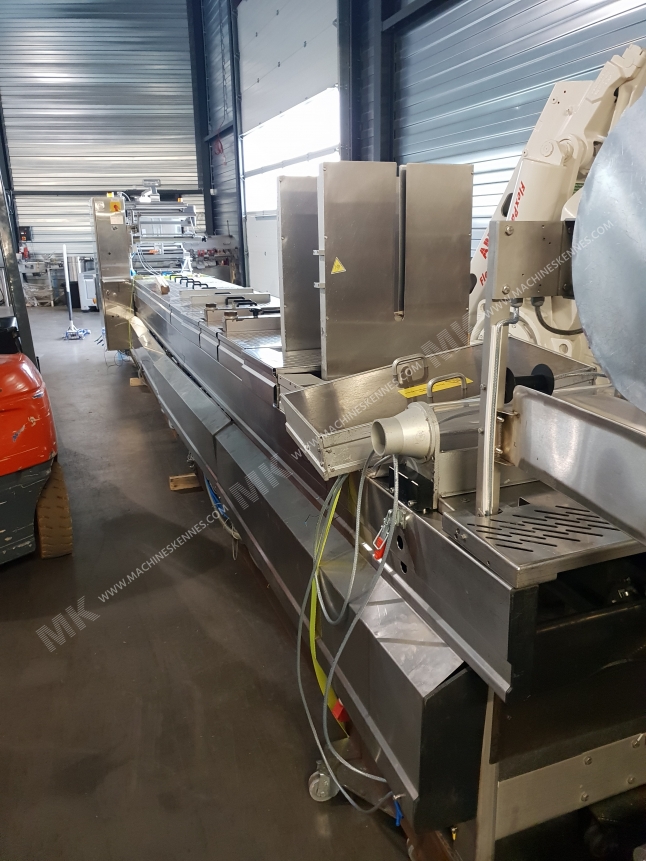

This used Multivac R530 Thermoformer is built in 2001. The machine has a film width of 505mm and there is a dye set on the machine with an exit of 300mm. The format is now divided in a 4.4 format. The machine is equipped with 1 format. This format can be used for Rigid film packaging. The format has a stamp. The frame of the machine is currently 10800mm long, but we can always adjust this to the dimension you need.

Machine details

  • Type under foil unwinding: 76mm Core.
  • Type top foil unwinding: 76mm core.
  • The machine has 2 cuts stans (Hard foil).
  • The machine has 4 contour cuts.
  • The machine is equipped with a Role scissors intersection length cutting.
  • For the process the residual foil is a Roll-up wheels on this machine.
  • This machine has no output belt.

Other features of the machine
  • Vacum option
  • Gas flushing
  • label option
  • Forming Pump

If you wish, you can contact us more photos or information.
